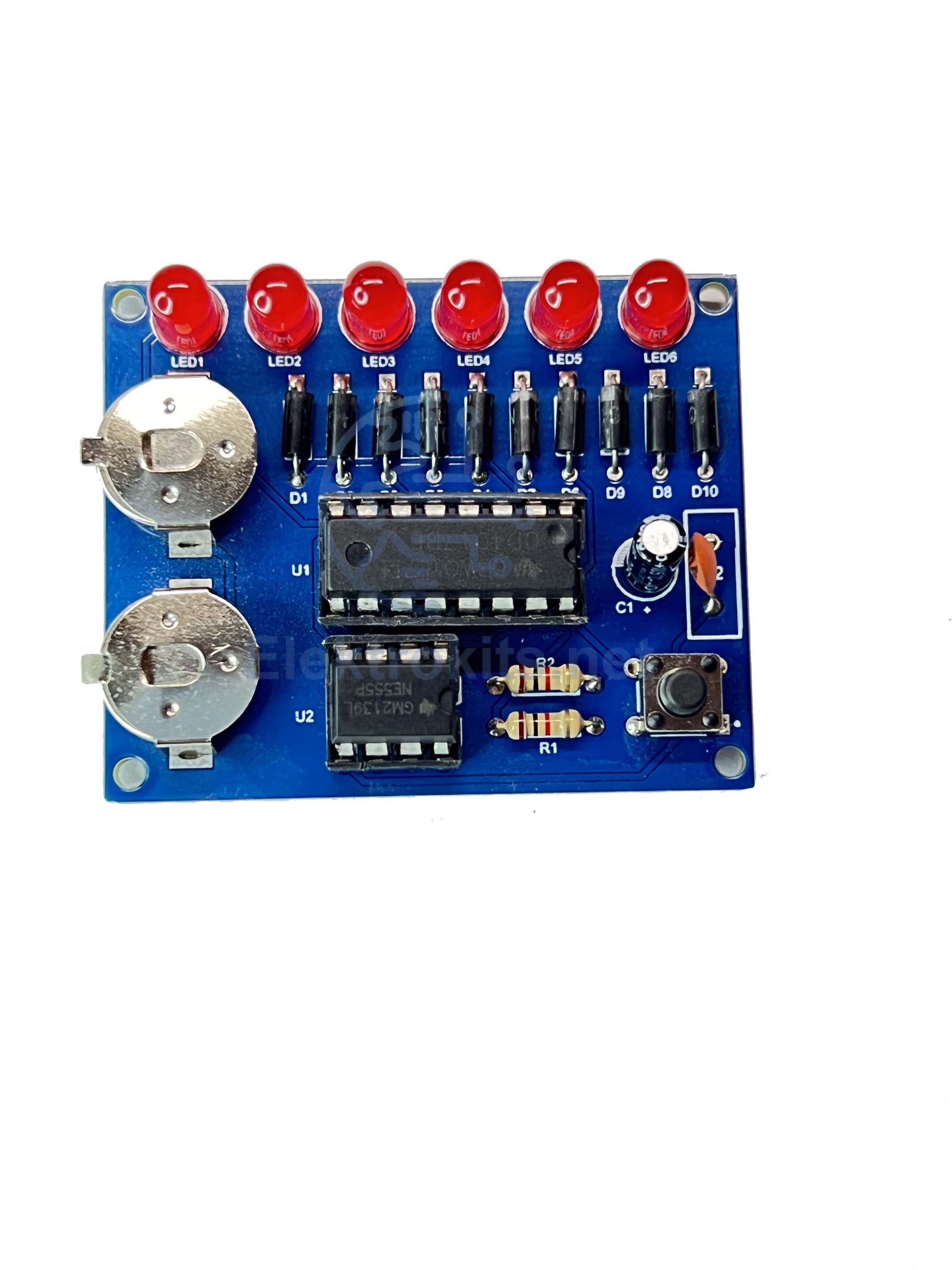

Knight Rider LED Effect with CD4017 and NE555 IC, Learn to Solder Kit, DIY Circuit Kit. Home or school project
Great project to learn to solder. Group, school, or home projects.
Learn the component names, symbols, and how to place them on the PCB board.
All through-hole components:
6x LEDs 5mm (Red)
2x Resistors
10x Diodes
1x Electrolytic capacitor
1x Ceramic capacitor
1x CD4017 IC + socket
1x NE555 IC + socket
1x Pushbutton
2x LR44 battery holders (include batteries)
High-quality two layers FR-4 PCB board.
PCB size: 40mm x 50mm
PCB Thickness: 1.6mm
PCB color: Blue
This kit is not assembled. You will need soldering tools to assemble this kit.
Comes with printed instructions.
We are located in the USA and will ship out from California.
Feel free to contact us if you have any questions.
Sample video of the finished project: Knight Rider LED Effect
