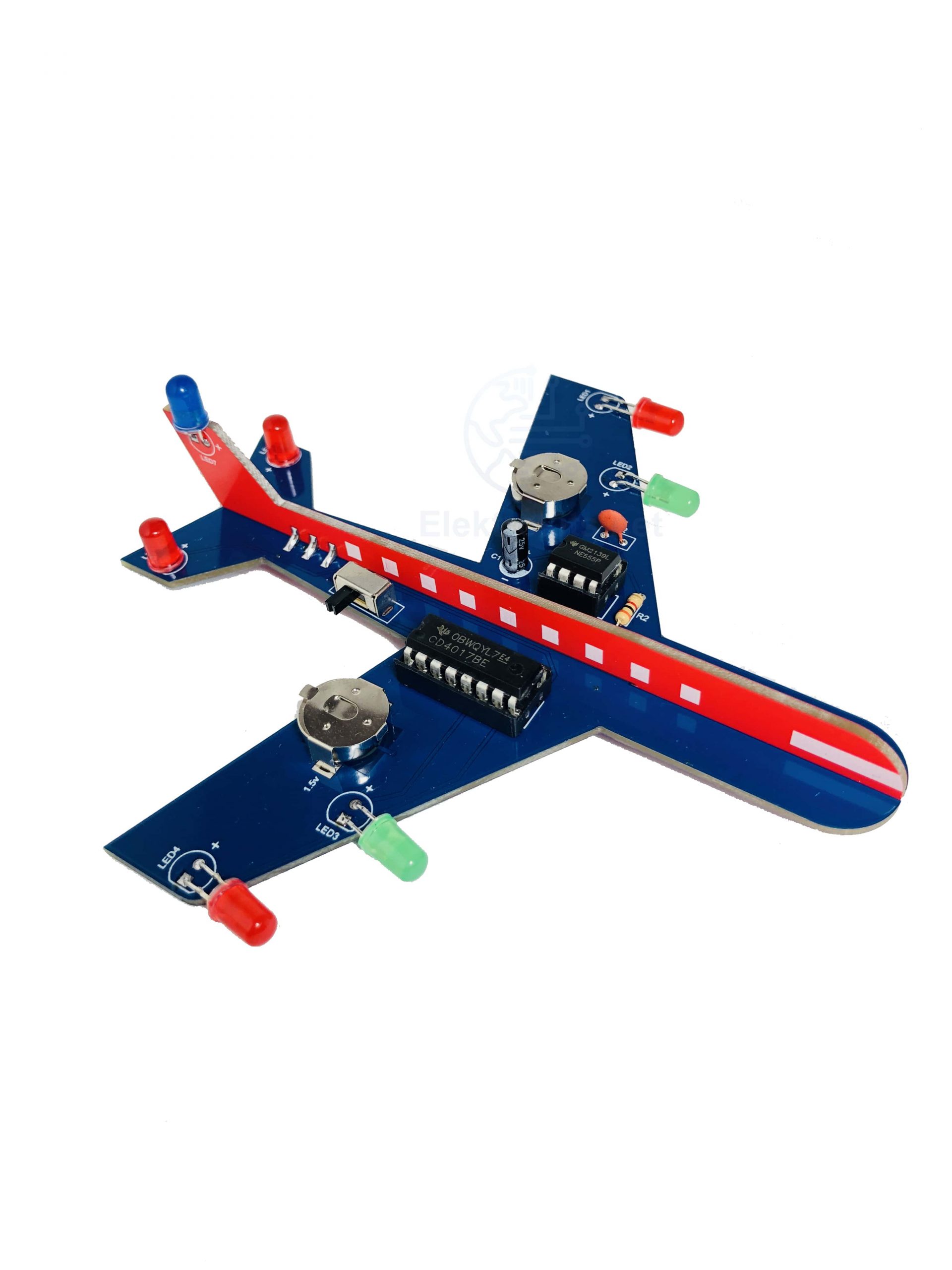

Flashing PCB Airplane with 5mm LEDs | DIY Electronic Circuit Kit | Learn to Solder Kit
Great project for learning to solder, suitable for group, school, or home projects.
Master the identification of component names and symbols, along with proper placement on the PCB board.

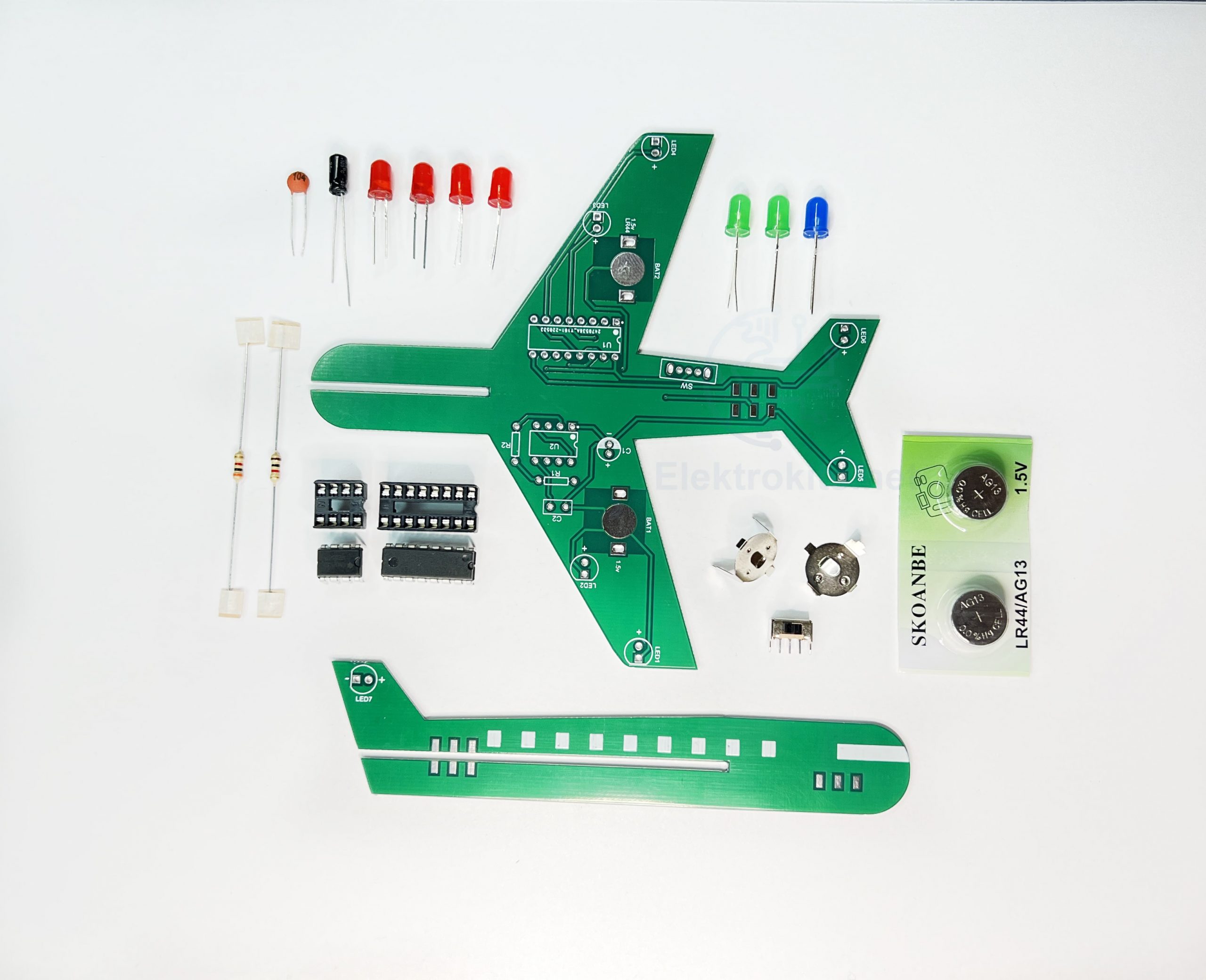

All through-hole components:
7x LEDs 5mm (4xRed, 2xGreen, 1xBlue)
2x Resistors
1x Electrolytic capacitor
1x Ceramic capacitor
1x CD4017 IC + socket
1x NE555 IC + socket
1x power switch
2x LR44 battery holders (include batteries)
High-quality two layers FR-4 PCB board.
PCB size: 120mm x 115mm
PCB Thickness: 1.6mm

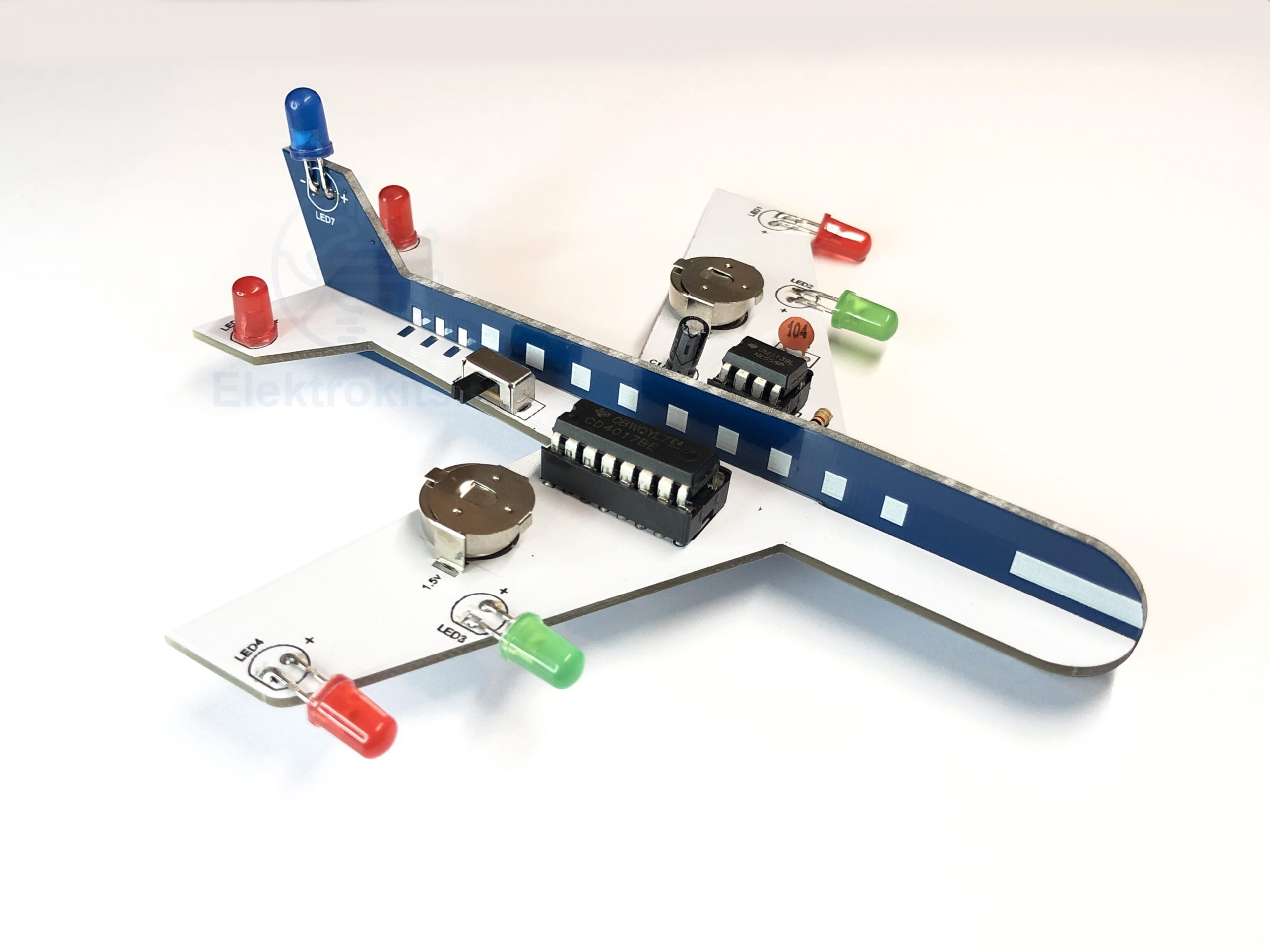

The picture depicts the actual item you will receive.
Comes with printed instructions in English.
This is a fantastic project suitable for school, home, or group activities.
Please note that this kit is not assembled. Soldering tools are required for assembly. Alternatively, you can purchase the fully assembled kit.
We are located in the USA and will ship out from California.
Feel free to contact us if you have any questions.
Sample video of the finished project:
