Flashing LED Police PCB Kit – DIY Electronic Circuit Kit – Learn to solder with all through-hole components CD4017& NE555
Great project to learn to solder. Group, school, or home projects.
Learn the component names, symbols, and how to place them on the PCB board.

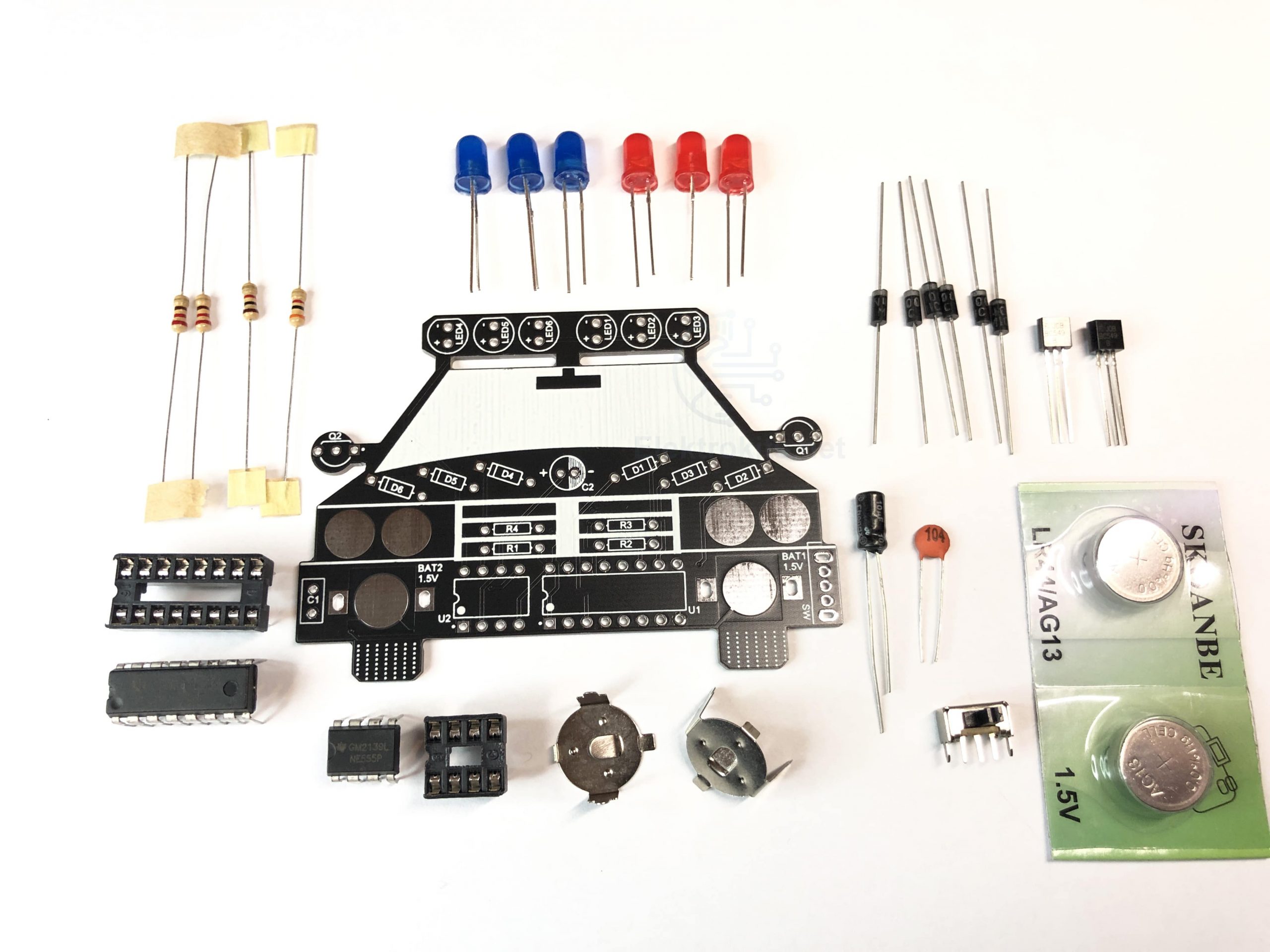

All through-hole components:
6x LEDs 5mm (3xRed, 3xBlue)
4x Resistors
2x Transistors
6x Diodes
1x Electrolytic capacitor
1x Ceramic capacitor
1x CD4017 IC + socket
1x NE555 IC + socket
1x power switch
2x LR44 battery holders (include batteries)

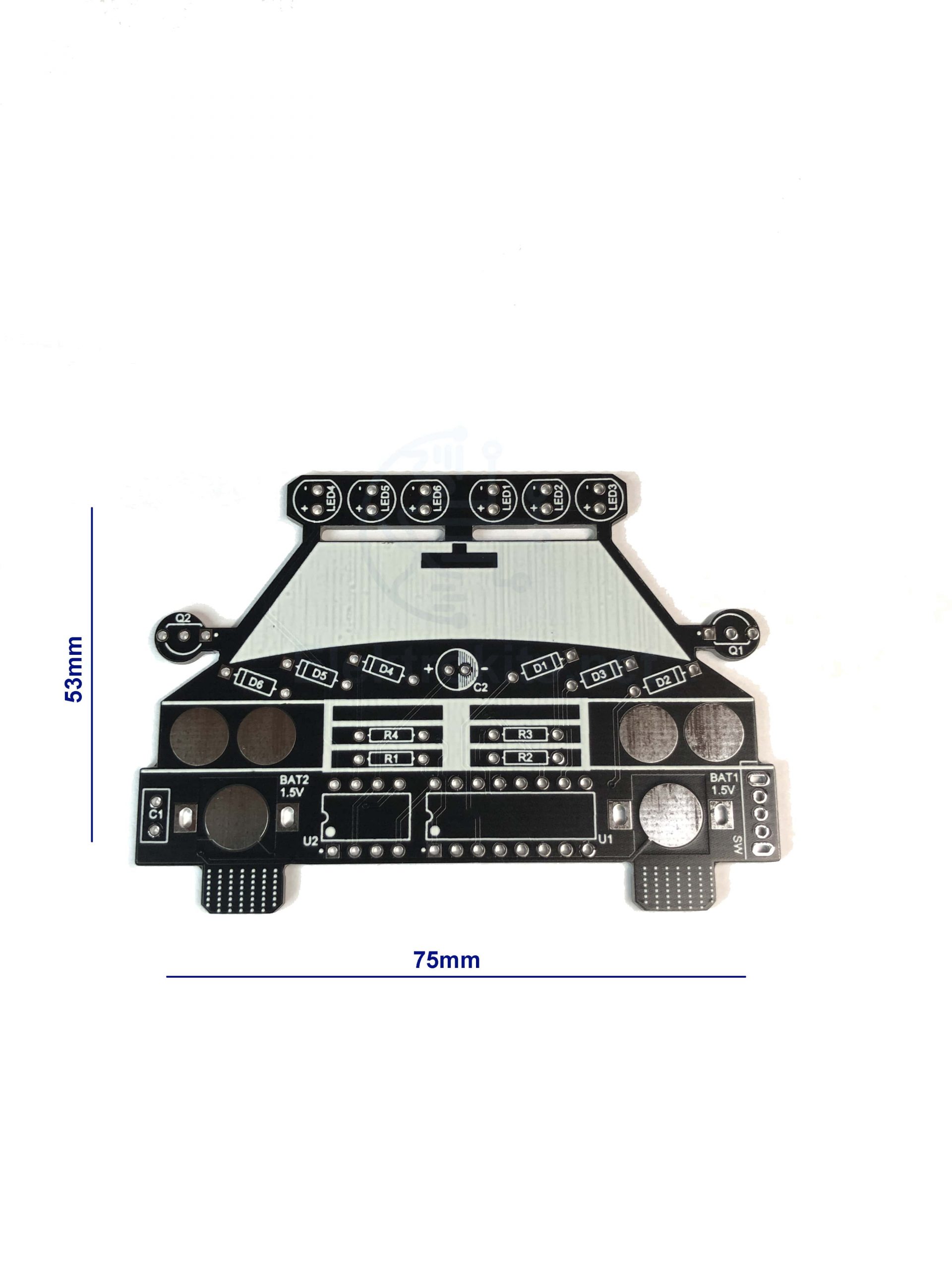

High-quality two layers FR-4 PCB board.
PCB size: 75mm x 53mm
PCB Thickness: 1.6mm
PCB color: Black
This kit is not assembled. You will need soldering tools to assemble this kit.
Comes with printed instructions.
We are located in the USA and will ship out from California.
Feel free to contact us if you have any questions.
Useful links:
Sample video of the finished kit Flashing Police LED Kit
