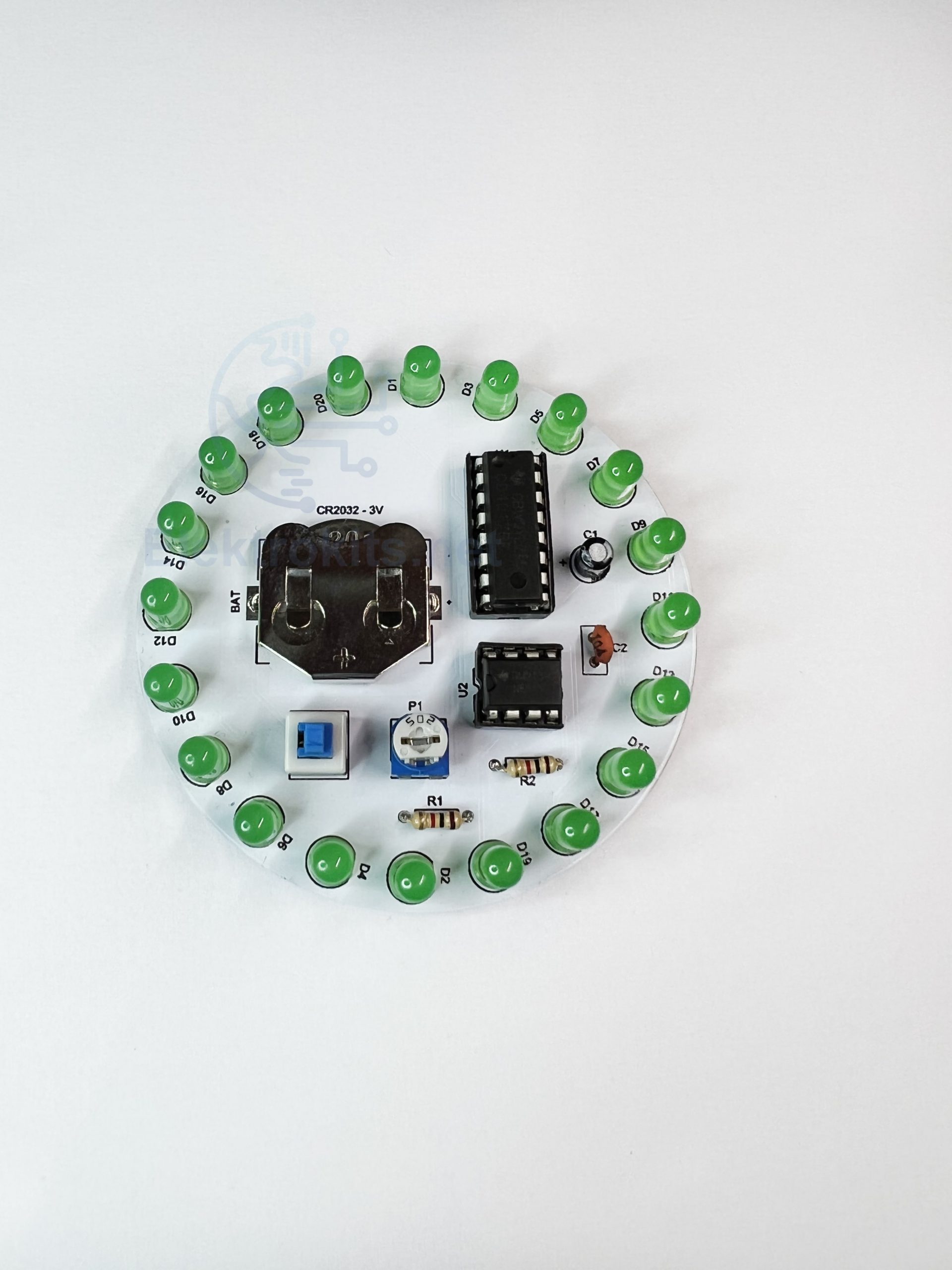

3V Circular LED Chaser with CD4017 and adjustable potentiometer. DIY Electronic Kit Learn to Solder for Home/School.
Amazing project to build and learn to solder. For home, school, or group projects.
Amazing project to build and learn to solder. For home, school, or group projects.
Learn the component names, symbols, and how to place them on the PCB board.

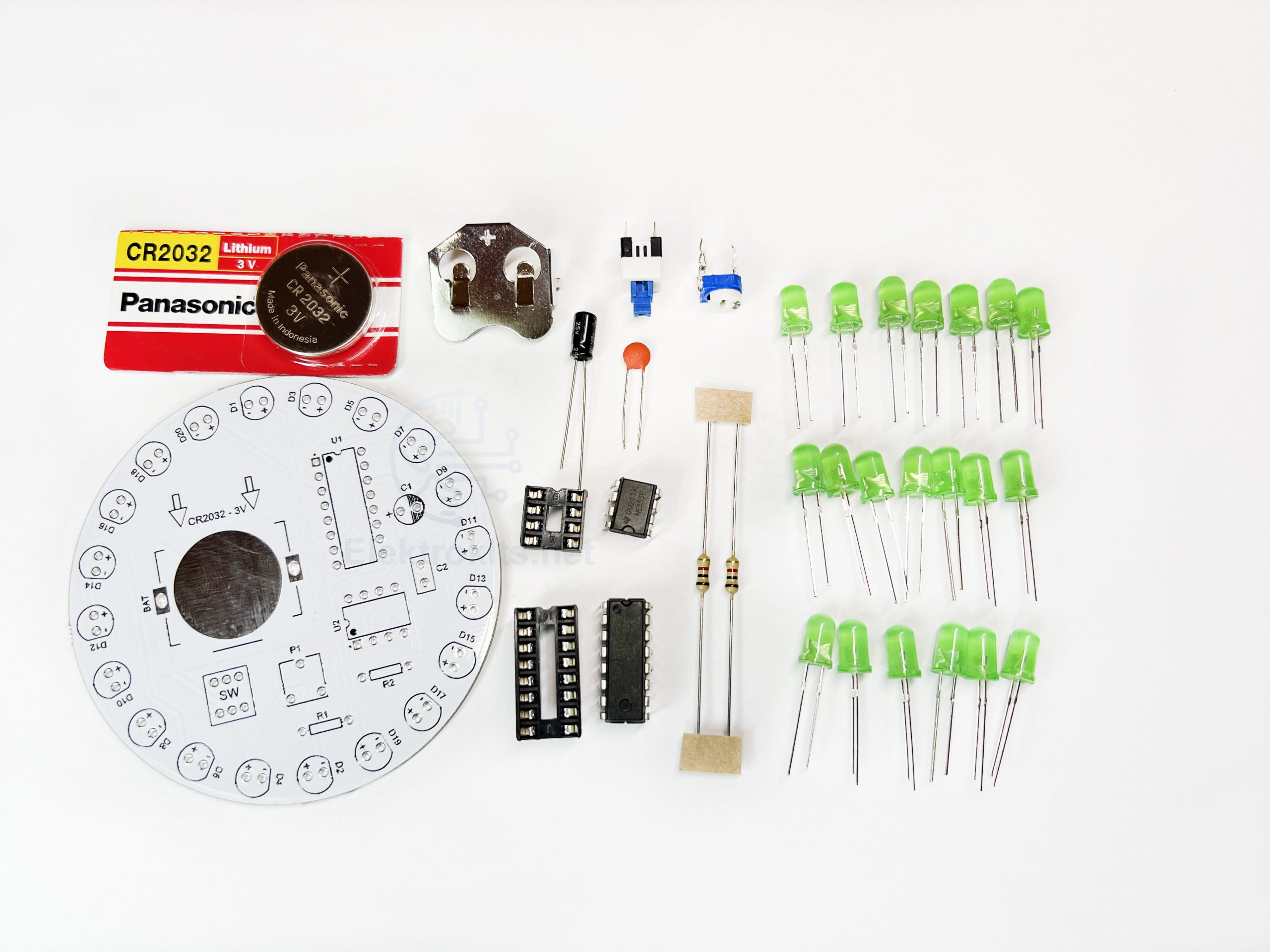

The picture is the actual item you will get. All through-hole components:20x LEDs 5mm (green)
All through-hole components:
20x LEDs 5mm (green)
2x Resistors
1x Electrolytic capacitor
1x Ceramic capacitor
1x Power switch
1x CD4017 & socket
1x NE555 & socket
1x Potentiometer
1x CR2032 battery holder
High quality two layers FR-4 PCB

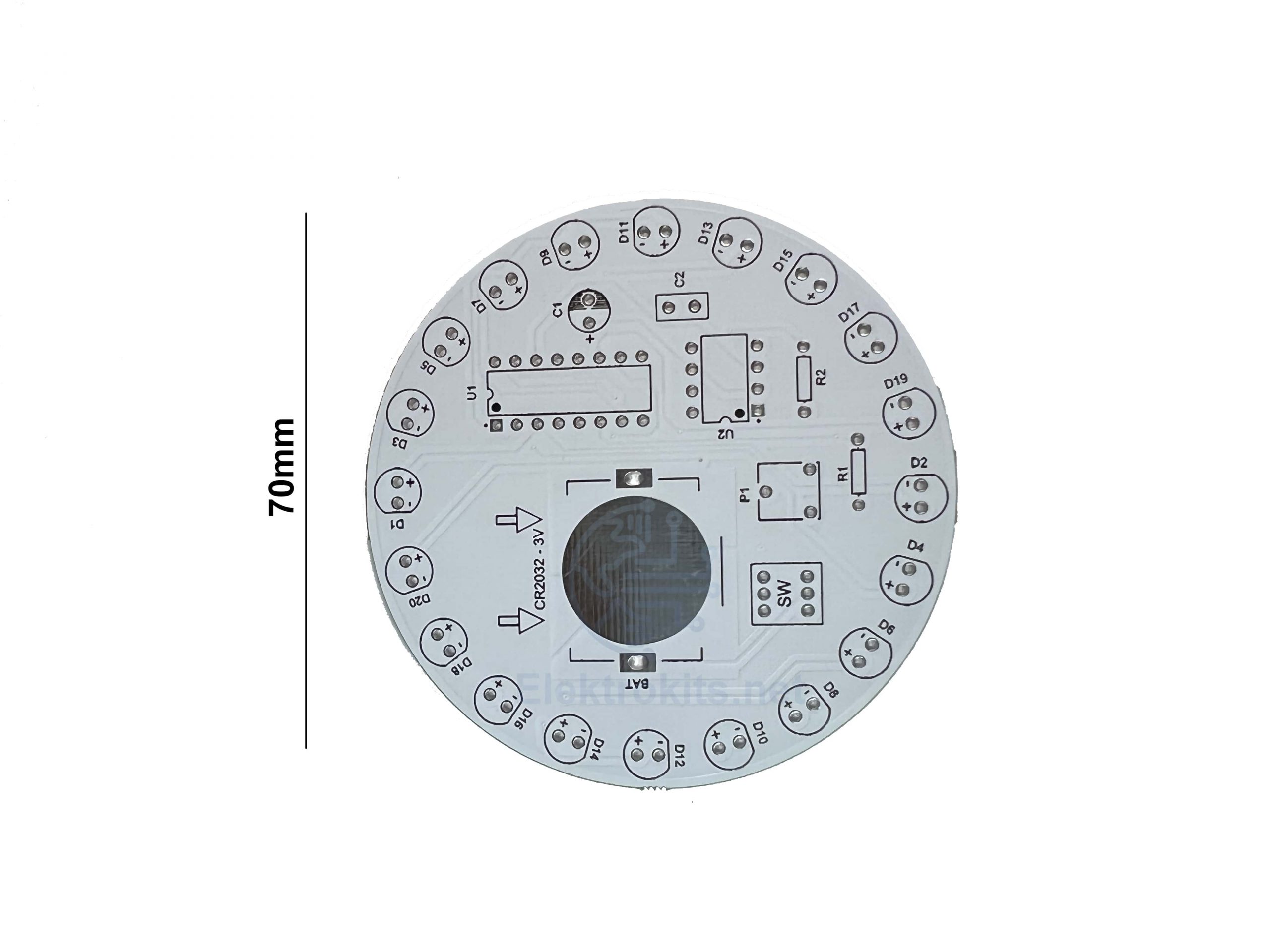

PCB size: 70mm
PCB thickness: 1.6mm
PCB color: White PCB + Green LED, Green PCB + Red LEDs
Voltage: 3V CR2032 (battery included)
Comes with printed instructions.
This kit is not assembled. You will need soldering tools to assemble this kit. Or buy the fully assembled 3V Circular LED Chaser with CD4017 & NE555 kit.
We are located in the USA and will ship out from California.
